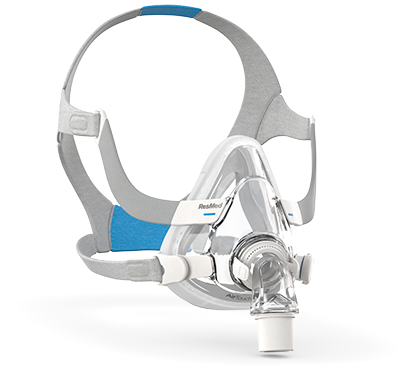

      AirTouch F20 Support

      Item Code : 63051, 63052, 63053

      mask_blue-1

      AirFit F20 for Her Support

      Item code: 63420, 63421, 63422. For her: 63423, 63424

      mask_violet (1)

      Select model:

      Product Information

      Sizing for your AirTouch F20

      • Step 1 - You can print your ResMed sizing guide here . Remember to print to scale. You’ll have to cut out your guide from the page.
      • Step 2 - Using a mirror, hold your sizing guide to your face. The top of the guide should correspond with the top of your nasal bridge.
      • Step 3 - The lower part of the guide indicates which mask size is best for your face. The size that aligns with the crease below your lower lip will be your best fit.
      • Step 4 - If you’re between sizes, we recommend selecting the larger option for greater comfort.

      Fitting your AirTouch F20

      • Step 1 - Unclip the EasyClick Magnets.
      • Step 2 - With the mask held against your face, pull the headgear over your head. Ensure the top of the mask cushion is sitting comfortably at the top of your nasal bridge. The bottom of your headgear should settle comfortably at the top of your neck and the top of the headgear would be on your crown.
      • Step 3 - Bring each of the EasyClick magnets up to meet their corresponding clips on the frame.
      • Step 4 - Adjust the tabs on the upper headgear.
      • Step 5 - Adjust the tabs on the lower headgear.
      • Step 6 - With your device still switched off, connect your device tubing to your mask elbow.
      • Step 7 - Connect the elbow to your mask.


      • To ensure your fit will work with your therapy:
      • Step 8 - Switch on your device and position yourself as if you are to begin therapy (e.g. lying down in bed).
      • Step 9 - Adjust your upper straps.
      • Step 10 - Adjust your lower straps.
      • Step 11 - Practice reseating your cushion – to do this, turn off your device, pull your mask away from your face, allow your cushion to reassume its natural shape, and then resettle your cushion on your face, with the top of the cushion sitting at the top of your nasal bridge.


      • These instructions are for general information purpose only. For full details, consult the user guide.

      Helpful resources

      For additional therapy assistance.

      AirTouch F20 user guide

      AirTouch F20 fitting template

      Fitting your AirTouch F20

        • Step 1 - You can print your ResMed sizing guide here . Remember to print to scale. You’ll have to cut out your guide from the page.
        • Step 2 - With the mask held against your face, pull the headgear over your head. Ensure the top of the mask cushion is sitting comfortably at the top of your nasal bridge. The bottom of your headgear should settle comfortably at the top of your neck and the top of the headgear would be on your crown.
        • Step 3 - Bring each of the EasyClick magnets up to meet their corresponding clips on the frame.
        • Step 4 - Adjust the tabs on the upper headgear.
        • Step 5 - Adjust the tabs on the lower headgear.
        • Step 6 - With your device still switched off, connect your device tubing to your mask elbow.
        • Step 7 - Connect the elbow to your mask.


      • To ensure your fit will work with your therapy:
      • Step 8 - Switch on your device and position yourself as if you are to begin therapy (e.g. lying down in bed).
      • Step 9 - Adjust your upper straps.
      • Step 10 - Adjust your lower straps.
      • Step 11 - Practice reseating your cushion – to do this, turn off your device, pull your mask away from your face, allow your cushion to reassume its natural shape, and then resettle your cushion on your face, with the top of the cushion sitting at the top of your nasal bridge.

      Disassembling your AirTouch F20

      • Step 1 - Remove elbow from frame.
      • Step 2 - Unclip the EasyClick Magnets.
      • Step 3 - Undo upper headgear tabs.
      • Step 4 - Pull strapping away from frame.
      • Step 5 - Pull cushion away from frame.

      Cleaning your AirTouch F20 (Daily)

      • Step 1 - Disassemble mask.
      • Step 2 - If required, wipe your cushion with a CPAP wipe or equivalent (non-alcoholic) and then allow to dry. Important – do not get cushion wet.
      • Step 3 - Rinse frame and elbow under running water. Clean each component with a soft bristle brush.
      • Step 4 - Soak components in warm water with mild liquid detergent for up to ten minutes.
      • Step 5 - Shake components in water.
      • Step 6 - Brush moving parts of elbow and around vent holes.
      • Step 7 - Brush areas of frame where arms connect, and inside and outside the frame where the elbow connects.
      • Step 8 - Rinse components under running water.
      • Step 9 - Leave components to air dry out of direct sunlight – making sure to squeeze the arms of the frame to ensure excess water is removed.

      Cleaning your AirTouch F20 (Weekly)

      • Step 1 - Disassemble mask. EasyClick magnets can remain attached to headgear during cleaning.
      • Step 2 - Handwash headgear in warm water with mild liquid detergent.
      • Step 3 - Rinse headgear under running water. Inspect to ensure headgear is clean and detergent free. Wash and rinse again, if necessary.
      • Step 4 - Squeeze headgear to remove excess water.
      • Step 5 - Leave headgear to air dry out of direct sunlight.

      Assembling your AirTouch F20

        • Step 1 - Attach cushion to frame.
        • Step 2 - Attach the EasyClick Magnets.
        • Step 3 - Connect upper headgear straps.
        • Step 4 - Connect elbow to mask frame.


      • These instructions are for general information purpose only. For full details, consult the user guide.

      Helpful resources

      For additional therapy assistance.

      AirTouch F20 user guide

      AirTouch F20 fitting template

      Managing leak with your AirTouch F20

      • A leak may occurs when your mask’s seal is compromised by movement or improper sizing.
      • To find a source of leak, run your finger along the edge of your mask’s seal to find escaping air. Once located, adjust your headgear.
      • Resolve any leak in the upper part of your mask by adjusting your upper straps.
      • Resolve lower mask leak with your lower straps.
      • If leak persists, reseal by turning off your device, pulling your mask away from your face, allowing your cushion to reassume its natural shape, and then resettling your cushion on your face, with the top of the cushion sitting at the top of your nasal bridge.
      • If leak continues, you may need a different size mask. Try our sizing guide or speak to your healthcare provider about getting a different size mask.

      Maintaining your AirTouch F20

      • To maintain optimum therapy performance, your mask should be checked regularly for signs of damage and deterioration.
      • When cleaning your mask, you should also check each component for damage. Your cushion, frame, tubing, elbow and headgear should all be regularly checked for cracks and tears.
      • If any component of your mask is cracked or torn, it may be damaged and in need of replacement.
      • To ensure optimum comfort and seal, we recommend regularly replenishing your AirTouch F20 mask cushion every month.

      Cleaning your AirTouch F20 (Daily)

      • Step 1 - Disassemble mask.
      • Step 2 - If required, wipe your cushion with a CPAP wipe or equivalent (non-alcoholic) and then allow to dry. Important – do not get cushion wet.
      • Step 3 - Rinse frame and elbow under running water. Clean each component with a soft bristle brush.
      • Step 4 - Soak components in warm water with mild liquid detergent for up to ten minutes.
      • Step 5 - Shake components in water.
      • Step 6 - Brush moving parts of elbow and around vent holes.
      • Step 7 - Brush areas of frame where arms connect, and inside and outside the frame where the elbow connects.
      • Step 8 - Rinse components under running water.
      • Step 9 - Leave components to air dry out of direct sunlight – making sure to squeeze the arms of the frame to ensure excess water is removed.

      Cleaning your AirTouch F20 (Weekly)

        • Step 1 - Disassemble mask. EasyClick Magnets can remain attached to headgear during cleaning.
        • Step 2 - Handwash headgear in warm water with mild liquid detergent.
        • Step 3 - Rinse headgear under running water. Inspect to ensure headgear is clean and detergent free. Wash and rinse again, if necessary.
        • Step 4 - Squeeze headgear to remove excess water.
        • Step 5 - Leave headgear to air dry out of direct sunlight.


      • These instructions are for general information purpose only. For full details consult the user guide.

      Helpful resources

      For additional therapy assistance.

      AirTouch F20 user guide

      AirTouch F20 fitting template

      Traveling with your equipment

      Traveling

      Our products are designed to make travelling easy. Here are some useful tips.

      More Information

      Warranty & Servicing

      Warranty

      If you have any questions regarding warranty information on our masks, please contact your local customer service team.

      More Information

      Traveling with your equipment

      Traveling

      Our products are designed to make travelling easy. Here are some useful tips.

      More Information

      Warranty & Servicing

      Warranty

      If you have any questions regarding warranty information on our masks, please contact your local customer service team.

      More Information

      Accessories

      ResMed offers a range of accessories and spare parts for our sleep apnea therapy and CPAP masks, devices and humidifiers.

      Access

      CPAP Mask Wipes

      ResMed CPAP Mask Wipes are a fast and easy cleaning solution for any CPAP mask.

      More information…
      read more…

      Traveling with your equipment

      Traveling

      Our products are designed to make travelling easy. Here are some useful tips.

      More Information

      Warranty & Servicing

      Warranty

      If you have any questions regarding warranty information on our masks, please contact your local customer service team.

      More Information

      Getting started with therapy

      Get on the right track with your sleep therapy.

      Your therapy basics

      The how, what, where and why…

      The benefits of therapy

      What does therapy do for you…

      Think positive

      Some helpful tips…
